A package of sterile medical equipment can look perfectly ordinary until the moment someone opens it in a clinic. At that point, the seal has already done all the important work. It has kept contamination out through sterilization, storage, shipping, and handling. Nobody celebrates that invisible success, but everything depends on it.
A leaky hose fitting creates the same kind of problem at a smaller scale. You hook up a foam sprayer, turn on the water, and instead of smooth pressure at the nozzle, you get drips at the connection and weak performance where you need it. The stakes aren't the same as a sterile barrier in healthcare, but the principle is identical. The seal has one job. It must keep what belongs inside from escaping, and keep what belongs outside from getting in.
That simple promise is what seal integrity really means. It applies to medical pouches, pill blister packs, engine gaskets, fuel systems, drink containers, outdoor gear, and the washer hidden inside a garden-hose connection. Once you start looking for it, you see it everywhere.
Introduction The Unseen Guardian of Quality and Safety
A seal usually enters the story only after something has already gone wrong. You open a bag of coffee and the aroma is flat. You spot a damp ring under a car after it has been parked overnight. You pull out a flashlight after a rainy weekend and find fog on the inside of the lens. In each case, the failure looks different, but the weak point is the same. A barrier that was supposed to hold no longer does its job.
That idea matters at every scale. In a hospital, a failed package seal can expose a sterile device to contamination before anyone sees a problem. In a garage, a bad gasket or worn O-ring can bleed pressure, fluid, or fuel and turn a small maintenance issue into a bigger repair. One situation carries far higher consequences, but both depend on the same engineering reality. The boundary has to stay intact for the product to stay safe and useful.
A sealed system works like a roof during a storm. The shingles can be in good shape, the framing can be solid, and the house can still take on water through one small opening. Seals behave the same way. A pouch, cap, gasket, hose fitting, or battery cover only protects what is inside if the entire edge or contact surface holds under real conditions.
A seal is a promise about the whole boundary.
That is why seal integrity deserves attention from quality teams, mechanics, and careful DIYers alike. It affects safety, shelf life, cleanliness, pressure control, and trust in the product itself. A packaging engineer may study it through validation data. An auto enthusiast may notice it as a slow leak that keeps coming back. Both are asking the same question. Will this barrier still hold after heat, stress, vibration, handling, storage, and time?
The industrial world answers that question with controlled process settings and verification work. Everyday users answer it with inspection, fit, torque, and replacement of worn parts. Different tools, same standard. The seal has to keep outside threats out and keep the intended contents in.
What Seal Integrity Is and What It Is Not
Seal integrity starts with one simple idea. The seal is only doing its job if the full boundary keeps working after real use begins, not just when it first comes off the machine or out of the toolbox.
In packaging, that boundary includes the seal area, the materials on both sides of it, the package shape, and the stress the package sees in storage, shipping, handling, and opening. In a car, the same logic applies to a gasketed joint, an O-ring in a hose connection, or the edge around a battery compartment. A polished surface can still fail if the contact area is damaged, dirty, or uneven. That same lesson shows up in consumer care too. A coating may look great, but long-term protection still depends on how well the surface system holds up under washing, heat, and contamination, which is part of why people pay attention to automotive ceramic coating protection and maintenance.
A good mental model is a window in heavy rain. The glass can be strong. The frame can look solid. If one corner of the weather seal has a tiny gap, water still gets in. Seal integrity works the same way. A package edge, bottle cap, or engine seal can appear sound while a small channel gives air, fluid, or contaminants a path through.
That is why engineers separate seal integrity from seal strength. Strength answers a narrower question: how much force does it take to pull or peel something apart? Integrity asks whether the barrier remains closed across the entire sealed area. In medical and pharmaceutical packaging, that distinction matters because a seal can resist peeling and still allow a leak path that defeats the package's protective purpose.
What it is
Seal integrity is the condition of the entire finished barrier during actual service. It focuses on performance across the whole boundary, under the conditions the product will really face.
It asks questions such as:
- Does the sealed boundary block contamination or leakage as intended?
- Does it stay intact after handling, storage, vibration, pressure, or temperature changes?
- Does the full seal perform consistently, including corners, curves, interfaces, and hard-to-see areas?
That is a broader standard than “it sealed once” or “it took a lot of force to open.”
What it is not
Seal integrity is not a single peel-force result. It is not a visual check by itself. It is not proof based on an even-looking seam, a tight-feeling cap, or extra torque on a fitting.
A pouch can open within the expected force range and still contain a tiny channel. A coolant fitting can feel snug while a nicked O-ring leaks under pressure. A medical pouch can look clean and still lose barrier performance because one section of the seal never formed correctly.
Practical rule: If you only measure separation force, you have not yet shown that the barrier is leak-free.
Where confusion usually starts
The common mistake is treating “hard to open” as the same thing as “safe to use.” They overlap sometimes, but they are not the same measurement. Strength describes resistance to opening. Integrity describes resistance to passage.
That difference helps in both regulated manufacturing and weekend troubleshooting. If a sterile package passes a pull test but fails to protect contents, the issue may be a channel, pinhole, wrinkle, contamination in the seal area, or poor process control. If a hose fitting in a garage keeps seeping after repeated tightening, the issue may be alignment, surface damage, trapped debris, or a flattened seal that can no longer conform to the joint.
In short, seal integrity is about whether the boundary still does its job as a barrier. Everything else is only part of the picture.
Why Seal Integrity Matters Across Industries
Seal integrity has a habit of hiding behind other words. In food, people talk about freshness. In pharma, they talk about sterility. In automotive work, they talk about leaks. In consumer products, they talk about reliability. The common thread is still the seal.
Food and beverage
When a food package holds its barrier, it keeps outside air, moisture, and contamination from entering as intended. When it doesn't, quality drops fast. The customer may notice staleness, odor changes, sogginess, or spoilage before they ever think about the package seam.
This is why packaging teams don't treat a seal as decoration. It's part of shelf-life protection, and it has to survive storage and shipping, not just the moment it leaves the machine.
Pharmaceuticals and medical devices
In high-risk packaging, the consequences are sharper. A sterile barrier must remain uncompromised through handling, aging, and distribution. If the seal fails, the package may still look mostly normal from the outside while no longer protecting the product in the way it was designed to.
Engineers in these industries also validate seals under realistic stress, including shelf-life simulation and distribution exposure. That mindset matters because a package doesn't live in a lab drawer. It gets sterilized, boxed, stacked, moved, and stored.
Automotive systems
Cars rely on seal integrity everywhere. Valve cover gaskets keep oil where it belongs. Cooling-system seals maintain pressure. Fuel-system components must contain liquid and vapor. Hydraulic components depend on controlled sealing surfaces to maintain force and motion. For a helpful mechanical reference on how sealing surfaces and piston design interact inside cylinders, MA Hydraulics Ltd on hydraulic pistons gives a useful component-level view.
A failed seal in a car doesn't always announce itself dramatically. It may start as a smell, a residue line, a pressure loss, or a stain that slowly gets worse.
Everyday tools and gear
Seal integrity also determines whether consumer gear feels solid or flimsy in use.
Consider a few familiar examples:
- Garden hose accessories: A poor hose-to-tool connection bleeds pressure and makes cleaning frustrating.
- Outdoor equipment: A lantern, storage case, or dry bag only works if the closure remains dependable.
- Water-resistant electronics: The housing must resist ingress at seams, ports, and covers.
- Vehicle appearance products: Protective systems only perform well when the surface and surrounding components stay clean and controlled. That's one reason detailers often pair washing discipline with longer-term protection like automotive ceramic coating guidance.
The customer usually judges the product. The engineer often finds that the seal made the difference.
Common Seal Failure Modes and Their Causes
A seal rarely fails all at once. More often, it fails the way a roof starts leaking. One small gap appears, water finds it, and the problem spreads long before anyone sees a drip. The same pattern shows up in sterile pouches, hydraulic cylinders, coolant systems, garden hoses, and storage cases.
That is why engineers sort failures by mode first and cause second. “Bad seal” is too vague to fix. A narrow leak channel, a cut gasket, and a deformed O-ring can all produce leakage, but they usually come from different mistakes in design, setup, handling, or aging.
Channel leaks and incomplete seals
A channel leak is a thin, continuous pathway through part of the seal area. In packaging, it can form when dust, fibers, or product residue gets trapped where two layers should bond. It can also happen when heat, pressure, or dwell time is off, or when the package shifts during sealing.
This failure mode confuses people because the seal can still look normal from the outside. It may even resist a casual tug. A zipper bag can feel closed and still leak air through one tiny section. A hydraulic assembly can appear tight while fluid escapes along a damaged sealing line. For a useful component-level example of how sealing surfaces interact inside cylinders, see MA Hydraulics Ltd on hydraulic pistons.
Pinholes and tiny material defects
Pinholes are small openings in the material or in the sealed region itself. They often come from abrasion, thin spots, handling damage, or manufacturing defects that were too small to notice during assembly.
Pressure is relentless. It behaves like water slipping through the smallest crack in grout. In medical or pharmaceutical packaging, a tiny hole can break the barrier that protects the product. In everyday use, the same principle explains why a nicked hose washer, a cracked bottle cap, or a slightly damaged gasket can create a steady leak even when everything looks “basically fine.”
Fractures, creep, and aging
Some seals pass at first and fail later. Plastics can become brittle. Elastomers can flatten and stay compressed. Repeated heat cycles, vibration, chemicals, and storage time can slowly change the shape or flexibility of the sealing surface.
Car owners see this under the hood all the time. A seal that worked during installation may start weeping after months of heat and pressure changes. Consumers see a milder version in outdoor gear, lids, and connectors that stop closing tightly after repeated use.
A short visual can help if you want to see how small leaks and joint failures show up in practice.
Why strength tests can miss the underlying problem
Seal strength and seal integrity answer different questions. Strength asks how much force it takes to pull a seal apart. Integrity asks whether the finished package or joint blocks leakage across the whole sealed area.
That distinction matters because a seal can be hard to peel and still contain a narrow leak path. A jar lid can feel tight in your hand and still let vapor escape. A hose fitting can thread together cleanly and still seep if the sealing face is scratched or the gasket is twisted. In regulated packaging, this gap between “strong” and “leak-free” is a well-known reason engineers use more than one test method, as noted earlier.
Common root causes in plain language
- Wrong process settings: Too little heat, too much pressure, uneven compression, or short dwell time can leave weak spots or distort the seal.
- Contamination in the seal zone: Dust, oil, fibers, moisture, or product residue can interrupt contact like a crumb caught in a door gasket.
- Material mismatch: Some layers, gaskets, and elastomers do not bond or recover well under the temperature, chemical, or pressure conditions they face.
- Poor geometry: Tight corners, folds, sharp edges, and uneven surfaces concentrate stress and create preferred leak paths.
- Assembly damage: Cross-threading, overtightening, under-tightening, and misalignment can damage the seal before the product is ever used.
- Connection mismatch: A sealing element only works if the mating parts fit the way they were designed to fit. That is easy to see in 3/4 quick connect fittings, where the interface, the gasket, and the locking features all have to work together.
The lesson across industries is simple. A failed seal is usually not a mystery. It is a physical defect with a physical cause. Whether you are protecting a sterile device, keeping hydraulic pressure where it belongs, or stopping a backyard hose from dripping, the diagnosis gets much better once you identify the failure mode first.
A Guide to Seal Integrity Testing and Inspection
A sealed package can look perfect on the outside and still fail at its one job. A medical pouch may pass a quick visual check yet leak enough to compromise sterility. A brake fluid cap or coolant connection in a garage can do the same thing on a smaller scale. It looks closed. It is not sealed.
That gap between appearance and performance is why inspection has to be more disciplined than a quick glance. The best test method depends on the kind of defect you are trying to catch, the value of the product, and the consequences of a missed leak.
Two useful ways to classify tests
A practical starting point is to sort test methods into two groups.
The first is destructive versus non-destructive.
- Destructive tests change or consume the sample. Peel, burst, and dye tests often fall into this category.
- Non-destructive tests inspect the package without ruining it. That matters in high-value production and in systems that need frequent or in-line checks.
The second is deterministic versus qualitative or probabilistic.
- Deterministic methods are designed to produce repeatable, measurable pass or fail results under controlled conditions.
- Qualitative or probabilistic methods still have value, especially for screening, but the outcome can depend more on operator technique, viewing conditions, or defect shape.
A simple way to frame it is this. Some tests ask, “Can a trained person spot a problem?” Others ask, “Can the instrument measure a leak path below human perception?”
Comparison of Common Seal Integrity Test Methods
| Test Method | How It Works | Sensitivity (Detects) | Pros | Cons |
|---|---|---|---|---|
| Visual Inspection | Operator examines the seal and package for visible defects | Visible defects only | Fast, simple, low cost | Misses subtle leaks and hidden channels |
| Bubble Emission | Package is submerged or exposed under pressure/vacuum and leaks show as bubbles | Gross leaks and larger channels | Good for gross leaks, intuitive to interpret | Less suitable for subvisible defects |

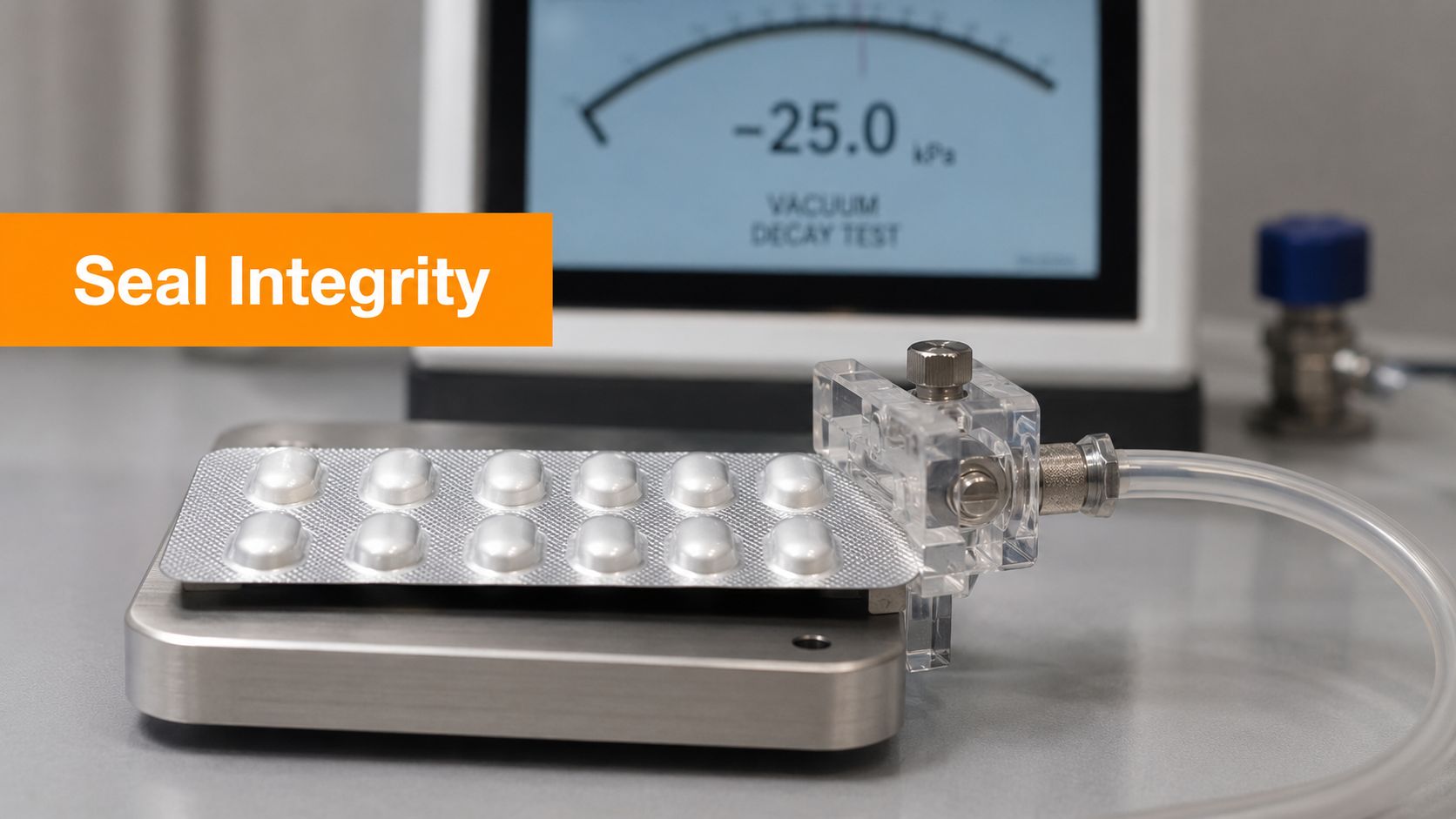

| Vacuum Decay | Measures pressure change over time in a controlled chamber | Very small leaks in suitable package systems | Highly sensitive, non-destructive, quantitative | Equipment and validation demands are higher |
| Airborne Ultrasound | Uses signal transmission changes across the seal | Small defects in suitable seal conditions | Fast and useful for certain seal conditions | Not a universal answer for every package format |
| Dye-Based Methods | Dye is applied to reveal pathways through a seal | Qualitative | Useful for locating leak paths | Destructive and operator-dependent |
| Peel or Burst Strength Tests | Measures force to peel or rupture sealed material | Not an integrity sensitivity measure | Good for process consistency checks | Doesn't prove the whole package is leak-free |
What the numbers actually mean
Sensitivity figures are useful, but they can mislead if they are read like marketing claims. A method that performs well in one package format, material stack, or defect shape may behave differently in another.
DuPont's 2024 seal testing overview summarizes this range clearly. Bubble emission under ASTM F2096 is often used for larger leak paths and has limited probability of catching smaller defects, while vacuum decay can detect much smaller leaks in suitable applications and airborne ultrasound can identify smaller seal defects under the right conditions (DuPont seal testing overview).
That is why experienced quality teams do not treat a single passing test as proof that every possible leak has been eliminated.
A passing result only means the package passed the detection capability of that method under those conditions.
That idea also makes sense outside regulated packaging. If you patch a surface with a consumer sealant, the repair may look clean and still hide edge lift, trapped contamination, or a tiny path for water or air. Inspection still matters after the fix, and so does knowing how to remove Flex Seal cleanly before rework when the original application masks the actual joint condition.
How to choose a method
Start with the failure you care about most.
If the main risk is an obvious gross leak, a simple screening method may be enough. If the risk is a tiny channel that could affect sterility, shelf life, or pressure retention, you need a more sensitive and repeatable method. If you are tuning a sealing process, peel and burst tests can show consistency trends, but they do not confirm that every package is free of leak paths.
It helps to use an everyday comparison. Checking a refrigerator door seal by sight is useful, but closing a strip of paper in the door and feeling whether it slips gives you a more meaningful check of sealing force. Industrial testing follows the same logic. Visual inspection has a place. Instrumented methods answer harder questions.
For maintenance teams, utilities, and plant technicians, ultrasound also extends beyond package testing. This guide to practical ultrasonic leak detection methods shows how the same physical principle can help locate leaks in compressed air and other industrial systems.
Troubleshooting and Preventive Best Practices
A leaking seal rarely fails all at once. More often, it drifts out of spec. A packaging line starts running a little hotter. A washer takes a set after repeated use. A roof joint sees one more heat cycle, one more storm, one more small movement. The lesson is the same in a sterile medical pouch and a garden hose fitting. Small changes create leak paths.
Prevention works best when you treat sealing like system control, not a last-minute repair. Material choice, surface condition, assembly force, and real-world stress all have to line up. Industrial teams formalize that discipline through validation. DIY users apply the same logic with simpler tools and closer inspection.
For industrial teams
In regulated packaging, the seal has to survive storage, shipping, and handling, not just pass at the moment it leaves the machine. Standards such as ISO 11607, ASTM F1980, and ASTM D4169 are used to verify sealing parameters, estimate shelf life under aging, and check how distribution stress affects package performance. The point is straightforward. A seal that looks good on day one can still fail after vibration, temperature swings, or time on the shelf.
That is why prevention usually starts with process discipline:
- Hold sealing parameters steady: Temperature, pressure, and dwell time need defined limits and routine verification.
- Match materials on purpose: Films, lidstock, coatings, adhesives, and sealants must work together under actual use conditions.
- Test after stress exposure: Aging and distribution simulation often reveal weak spots that routine in-line checks miss.
- Use more than one inspection method: Visual checks, physical tests, and instrumented methods each catch different defect types.
Continuous monitoring adds another layer. Researchers have reported online seal inspection using image analysis to identify irregular seal regions in real time, which helps teams catch process drift earlier without waiting for a later sample review. That shift matters because troubleshooting gets easier when you find the change near its source.
A practical way to picture it is a car wheel slowly going out of alignment. If you catch the drift early, you adjust and move on. If you miss it, tire wear, vibration, and handling problems show up later and cost more to fix. Seal processes behave the same way.
For DIY users and auto enthusiasts
At home or in the garage, seal troubleshooting is usually more mechanical than mysterious. The usual suspects are worn washers, twisted O-rings, dirty threads, over-tightened fittings, cracked plastic, or connectors that almost fit but do not seal correctly.
Start with the parts that form the barrier.
-
Inspect before tightening harder
Extra force can flatten a washer, nick an O-ring, or crack a plastic fitting. Remove the connection and look for cuts, flattening, debris, or uneven compression. -
Clean the mating surfaces
A grain of dirt can do the same job as a tiny channel in industrial packaging. Wipe sealing faces, grooves, and threads before reassembly. -
Use lubricant only if the material calls for it
Some elastomers benefit from a compatible lubricant during assembly. The wrong grease can swell, soften, or weaken the seal. -
Replace low-cost soft parts early
Washers and O-rings are wear items. If they look brittle, shiny, cracked, or permanently squashed, replace them. -
Read the indirect clues
Moisture, residue, odor, pressure loss, or a fresh drip under a vehicle often points to a sealing issue before the leak becomes obvious.
Surface prep matters just as much in repair work. If an old patch, coating, or consumer sealant is hiding the true condition of a joint, clean removal is part of troubleshooting. This guide on how to remove Flex Seal cleanly before rework is a useful example of why the next seal depends on the surface you leave behind.
Material selection also changes with the job. A medical pouch, an engine O-ring, and an exterior building joint do not face the same temperatures, chemicals, or movement. For weather-exposed seams that need to tolerate movement, products such as metal roofing butyl tape show how flexible sealing materials are used where water resistance alone is not enough.
Good troubleshooting follows one rule across all these settings. Find the leak path, then fix the condition that created it. That approach saves time in a plant, in a workshop, and in your driveway.
Your Seal of Approval Is More Than Just a Phrase
A good seal rarely gets noticed. It keeps working. That quiet reliability is what makes seal integrity so important, from sterile medical packaging to a pressure connection in your driveway setup.
The main lesson is straightforward. Seal strength is not the same as seal integrity. A part can feel solid, test strong, or look fine and still allow a leak path. Real protection comes from the whole barrier performing under the conditions it will face.
That's why engineers validate seals under aging and transport stress. It's also why DIY users should inspect washers, O-rings, mating surfaces, and fitment instead of relying on brute force. Different scale, same principle.
When you understand seal integrity, you stop treating leaks as random bad luck. You start seeing the barrier, the conditions, and the failure path more clearly. That's useful whether you're qualifying a package line, maintaining a hydraulic system, or trying to get a clean, mess-free wash at home.
